Double Socket Bend  90° , 45° , 30° , 22.5° , 11.25°       back

Double Socket Bend 11.25°

DN e L
80 7 30
100 7.2 30
150 7.8 35
200 8.4 40
250 9 50
300 9.6 55
350 10.2 60
400 10.8 65
450 11.4 70
500 12 75
600 13.2 85
700 14.4 95
800 15.6 110
900 16.8 120
1000 18 130
1100 19.2 140
1200 20.4 150

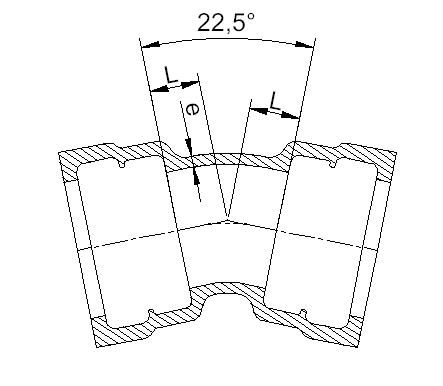

Double Socket Bend 22.5°

DN e L
80 7 40
100 7.2 40
150 7.8 55
200 8.4 65
250 9 75
300 9.6 85
350 10.2 95
400 10.8 110
450 11.4 120
500 12 130
600 13.2 150
700 14.4 175
800 15.6 195
900 16.8 220
1000 18 240
1100 19.2 260
1200 20.4 285

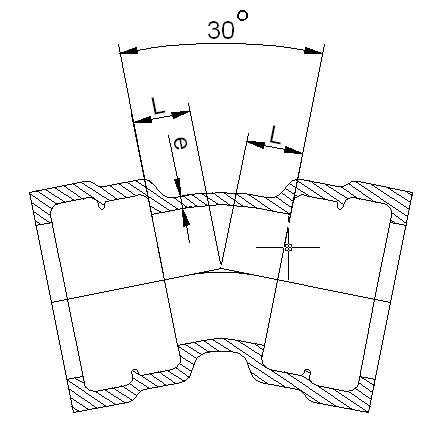

Double Socket Bend 30.5°

DN e t
80 7 45
100 7.2 50
150 7.8 65
200 8.4 80
250 9 95
300 9.6 110
350 10.2 125
400 10.8 140
450 11.4 ------
500 12 170
600 13.2 200
700 14.4 230
800 15.6 260
900 16.8 290
1000 18 320
1100 19.2 ------
1200 20.4 ------

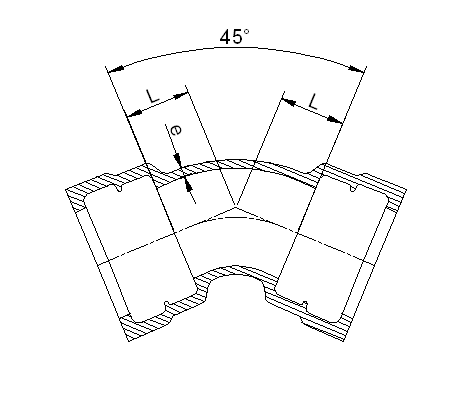

Double Socket Bend 45°

DN e L
80 7 55
100 7.2 65
150 7.8 85
200 8.4 110
250 9 130
300 9.6 150
350 10.2 175
400 10.8 195
450 11.4 220
500 12 240
600 13.2 285
700 14.4 330
800 15.6 370
900 16.8 415
1000 18 460
1100 19.2 505
1200 20.4 550

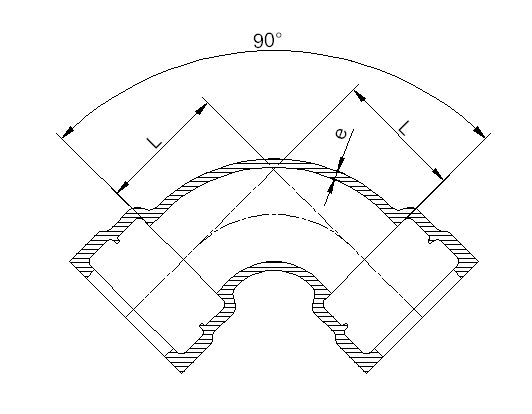

Double Socket Bend 90°

DN e L
80 7 100
100 7.2 120
150 7.8 170
200 8.4 220
250 9 270
300 9.6 320
350 10.2 370
400 10.8 420
450 11.4 470
500 12 520
600 13.2 620
700 14.4 720
800 15.6 820
900 16.8 920
1000 18 1020
1100 19.2 1120
1200 20.4 1220
