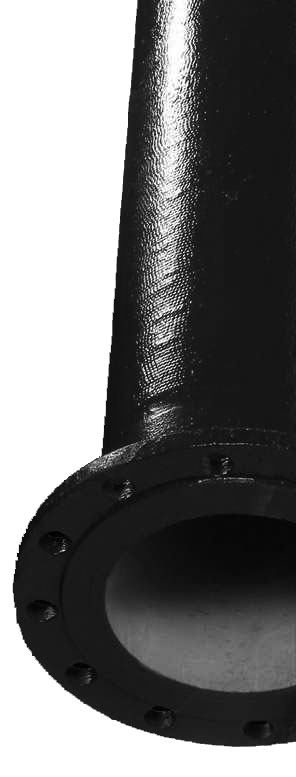

ENC can manufacture any configuration of Ductile Iron Fabricated Flanged Pipe to suit your specific requirements in nominal bore 100mm - 1000mm and up to a maximum length of 5.9m. according to ISO 2531/ EN 545 All fabricated pipe work is manufactured using Class 40 or K9 barrel as standard

This facility is available in both standards EN545 for potable water and EN598 for sewage and wastewater applications. Standard Flange Drilling is PN10,PN16 and PN25 upon Request .

ENC Manufacture Flanged Pipes using two Methods :
1- Cast Flanged Pipes
2- Welded Flanged Pipes

Flanged Pipe Type	Diameter Range	Pressure Rating
Cast Flanged Pipe	DN 100mm to 1000mm Length up to 2Mtr	PN 10 ,PN 16 (PN 25 on request)
Welded Flanged Pipe	DN 150mm to 1000mm Length up to 5.9Mtr	PN 10 ,PN 16 (PN 25 on request)

Types of Flanged Pipes
Double Flange Pipe	Double Flange Pipe with Puddle Flange
Flange Spigot Pipe	Flange Spigot Pipe with Puddle Flange
Flange Socket Pipe	Flange Socket Pipe with Puddle Flange
Socket Spigot Pipe	Socket Spigot Pipe with Puddle Flange
Double Spigot Pipe	Double Spigot Pipe with Puddle Flange
