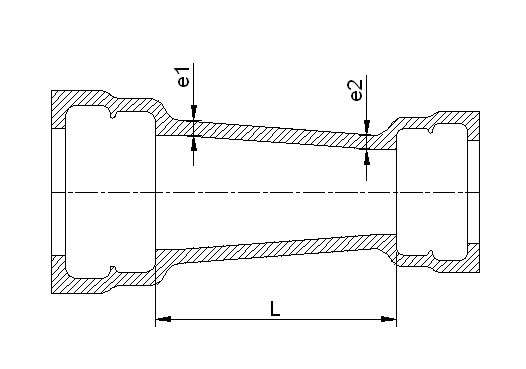

double socket tapers                                               back

Lu ė nom 2 ė nom 1 DN X dn
Series B Series A
75 70 7 7 50x 40
75 70 7 7 60 x 50
75 80 7 7 65 x 50
80 - 7 7 80 x 40
80 90 7 7 80 x 60
80 80 7 7 80 x 65
120 - 7 7.2 100 x 60
85 90 7 7.2 100 x 80
190 - 7 7.5 125 x 60
135 140 7 7.5 125 x 80
120 100 7.2 7.5 125 x 100
190 190 7 7.8 150 x 80
150 150 7.2 7.8 150 x 100
115 100 7.5 7.8 150 X 125
250 250 7.2 8.4 200 X 100
230 200 7.5 8.4 200 X 125
145 150 7.8 8.4 200 X 150
335 300 7.5 9 250 X 125
250 250 7.8 9 250 X 150
150 150 8.4 9 250 X 200
370 350 7.8 9.6 300 X 150
250 250 8.4 9.6 300 X 200
150 150 9 9.6 300 X 250
370 360 8.4 10.2 350 X 200
260 260 9 10.2 350 X 250
160 160 9.6 10.2 350 X 300
380 360 9 10.8 400 X 250
260 260 9.6 10.8 400 X 250
155 160 10.2 10.8 400 X 250
270 260 10.2 11.4 450 X 350
160 160 10.8 11.4 450 X 400
- 360 10.2 12 500 X 350
- 260 10.8 12 500 X 400
- 460 10.8 13.2 600 X 400
-- 260 12 13.2 600 X 500
- 480           12 14.4 700 X 500
- 280 13.2 14.4 700 X 600
- 480 13.2 15.6 800 X 600
- 280 14.4 15.6 800 X 700
- 480 14.4 16.8 900 X 700
- 280 15.6 16.8 900 X 800
- 480 15.6 18 1000 X 800
- 280 16.8 18 1000 X 900
- 280 18 19.2 1100 X 1000
- 480 18 20.4 1200 X 1000
- 360 20.4 22.8 1400 X 1200
- 260 22.8 24 1500 X 1400
- 360 22.8 25.2 1600 X 1400
- 360 25.2 27.6 1800 X 1600
- 360 27.6 30 2000 X 1800
- 360 30 32.4 2200 X 2000
- 360 32.4 34.8 2400 X 2200
- 360 34.8 37.2 2600 X 2400
Note : the larger  nominal size  is designated Dn and the smaller  nominal size  is   dn
