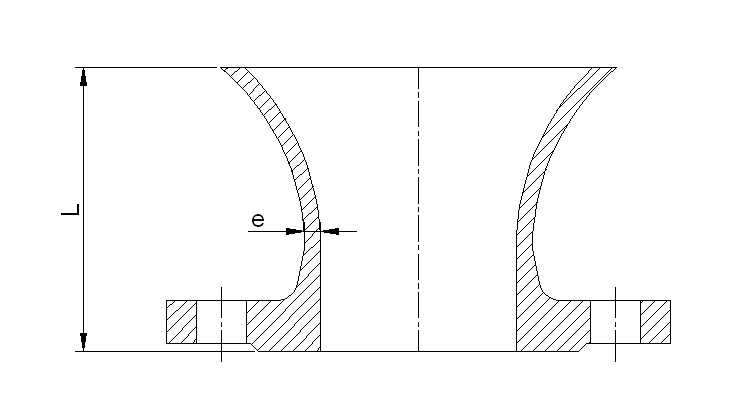

Flanged Bell Mouth                                back

DN e L D
80 7 135 160
100 7.2 140 185
150 7.8 155 245
200 8.4 170 310
250 9 190 310
300 9.6 210 435
350 10.2 225 495
400 10.8 245 560
450 11.4 260 620
500 12 280 685
600 13.2 300 810
700 14.4 310 945
800 15.6 380 1055
900 16.8 420 1165
1000 18 440 1290
1100 19.2 485 1325
1200 20.4 520 1440
1400 22.8 590 1670
1500 24 625 1785
1600 25.2 660 1900
