Flanged Pipes
Specifications
* The flanged Pipe is typically used
in above ground applications such as Over-ground Pipeline ,treatment
works, pumping stations or fire mains.
*
Flanged ratings from PN10, PN16 available. (PN25 on Request) .
*
According to the risk of excessive bending moment being imposed it is advised that flanged
pipe-work is not buried.

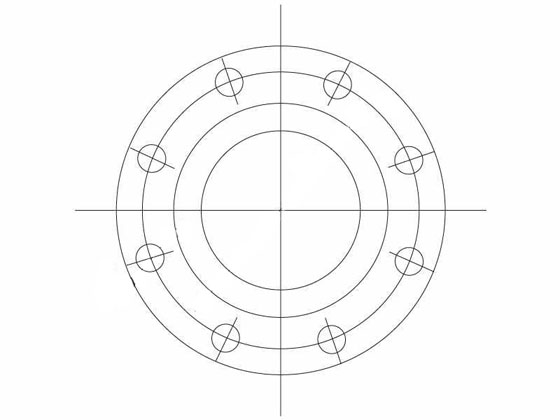

| PN 10 | PN 16 | ||||
|---|---|---|---|---|---|
| Dia (MM) | No. of Bolts | Bolt Size | Dia (MM) | No. of Bolts | Bolt Size |
| 150 | 8 | 20 | 150 | 8 | 20 |
| 200 | 8 | 20 | 200 | 12 | 20 |
| 250 | 12 | 20 | 250 | 12 | 24 |
| 300 | 12 | 20 | 300 | 12 | 24 |
| 350 | 16 | 20 | 350 | 16 | 24 |
| 400 | 16 | 24 | 400 | 16 | 27 |
| 450 | 20 | 24 | 450 | 20 | 27 |
| 500 | 20 | 24 | 500 | 20 | 30 |
| 600 | 20 | 27 | 600 | 20 | 33 |
| 700 | 24 | 27 | 700 | 24 | 33 |
| 800 | 24 | 30 | 800 | 24 | 36 |
| 900 | 28 | 30 | 900 | 28 | 36 |
| 1000 | 28 | 33 | 1000 | 28 | 39 |
