Socket Spigot Bends 90° , 45° , 30° , 22.5° , 11.25°        back

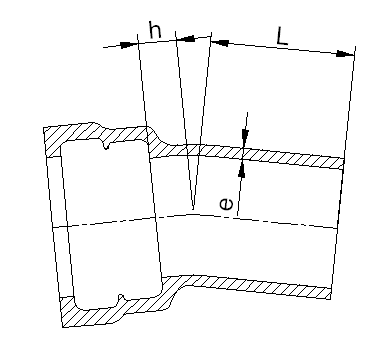

Socket Spigot Bends 11.25°



DN T L S
80 7 30 150
100 7.2 30 150
150 7.8 35 200
200 8.4 40 200
250 9 50 200
300 9.6 55 200
350 10.2 60 200
400 10.8 65 200
450 11.4 70 200
500 12 75 200
600 13.2 85 200
700 14.4 95 200
800 15.6 110 200
900 16.8 120 250
1000 18 130 250
1100 19.2 140 250
1200 20.4 150 250

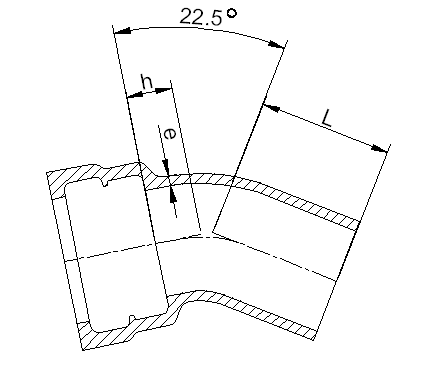

Socket Spigot Bends 22.5°

DN T L S
80 7 40 150
100 7.2 40 150
150 7.8 55 200
200 8.4 65 200
250 9 75 200
300 9.6 85 200
350 10.2 95 200
400 10.8 110 200
450 11.4 120 200
500 12 130 200
600 13.2 150 200
700 14.4 175 200
800 15.6 195 200
900 16.8 220 250
1000 18 240 250
1100 19.2 260 250
1200 20.4 285 250

Socket Spigot Bends 30°

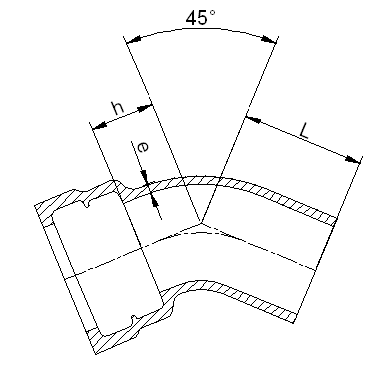

Socket Spigot Bends 45°

DN T L S
80 7 55 150
100 7.2 65 150
150 7.8 85 200
200 8.4 110 200
250 9 130 200
300 9.6 150 200
350 10.2 175 200
400 10.8 195 200
450 11.4 220 200
500 12 240 200
600 13.2 285 200
700 14.4 330 200
800 15.6 370 200
900 16.8 415 250
1000 18 460 250
1100 19.2 505 250
1200 20.4 550 250

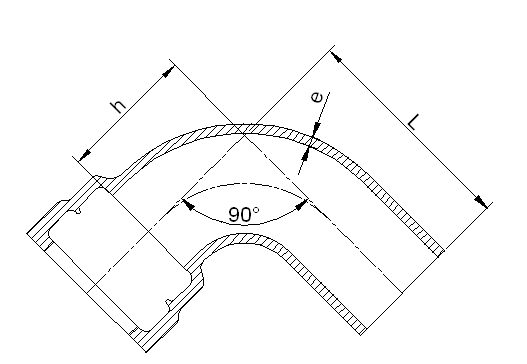

Socket Spigot Bends 90°

DN e t L
80 7 100 280
100 7.2 120 295
150 7.8 170 325
200 8.4 220 355
250 9 270 355
300 9.6 320 355
350 10.2 370 400
400 10.8 420 400
450 11.4 ----- ----
500 12 400 400
600 13.2 500 500
700 14.4
800 15.6
900 16.8
1000 18
1100 19.2
1200 20.4
