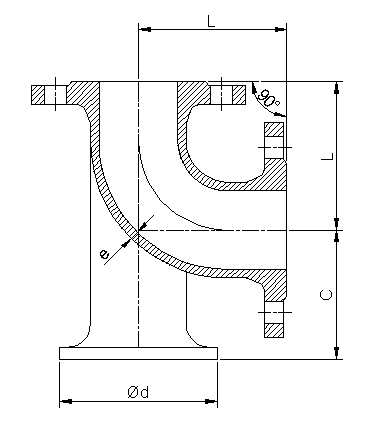

Double Flanged Bend 90° Duckfoot  Bend                back

DN × dn e1 L e2 t
65X65 7 150 7 75
80X80 7 170 7 85
100X80 7.2 170 7 95
100X100 7.2 190 7.2 95
125X125 7.9 225 7.9 110
150X80 7.8 170 7 120
150X100 7.8 195 7.2 120
150X150 7.8 255 7.8 125
200X80 8.4 175 7 145
200X100 8.4 200 7.2 145
200X150 8.4 255 7.8 150
200X200 8.4 315 8.4 155
250X80 9 200 7 210
250X100 9 200 7.2 215
250X150 9 255 7.8 220
250X200 9 315 9.4 225
250X250 9 375 9 230
300X100 9.6 205 7.2 235
300X150 9.6 260 7.8 240
300X200 9.6 320 8.4 245
300X250 9.6 375 9 250
300X300 9.6 435 9.6 260
350X100 10.2 205 7.2 260
350X150 10.2 260 7.8 265
350X200 10.2 325 8.4 270
350X250 10.2 375 9 275
350X300 10.2 435 9.6 285
350X350 10.2 495 10.2 290
400X100 10.8 210 7.2 285
400X150 10.8 265 7.8 290
400X200 10.8 325 8.4 295
400X250 10.8 375 9 300
400X300 10.8 435 9.6 310
400X350 10.8 495 10.2 325
400X400 10.8 560 10.8 320

450×100 11.4 215 7.2 320
450×150 11.4 270 7.8 320
450×200 11.4 325 8.4 320
450×250 11.4 375 90 325
450×300 11.4 445 9.6 335
450×350 11.4 495 10.2 340
450×400 11.4 560 10.8 345
450×450 11.4 620 11.4 350

500X100 12 215 7.2 345
500X150 12 275 7.8 345
500X200 12 330 8.4 345
500X250 12 380 9 350
500X300 12 450 9.6 360
500X350 12 500 10.2 365
500X400 12 565 10.8 370
500X450 12 620 11.4 375
500X500 12 680 12 380

600X100 13.2 220 7.2 395
600X150 13.2 285 7.8 395
600X200 13.2 340 8.4 395
600X250 13.2 380 9 400
600X300 13.2 455 9.6 410
600X350 13.2 500 10.2 415
600X400 13.2 570 10.8 420
600X450 13.2 620 11.4 425
600X500 13.2 685 12 430
600X600 13.2 800 13.2 440

700X100 14.4 345 7.2 445
700X150 14.4 345 7.8 445
700X200 14.4 395 8.4 445
700X300 14.4 575 9.6 460
700X400 14.4 575 10.8 470
700X500 14.4 810 12 480
700X600 14.4 810 13.2 490
700X700 14.4 925 14.4 500

800X100 15.6 350 7.2 495
800X150 15.6 350 7.8 495
800X200 15.6 350 8.4 495
800X300 15.6 580 9.6 510
800X400 15.6 580 10.8 520
800X500 15.6 815 12 530
800X600 15.6 815 13.2 540
800X700 15.6 1045 14.4 550
800X800 15.6 1045 15.6 560

900×100 16.8 355 7.2 545
900×150 16.8 355 7.8 545
900×200 16.8 355 8.4 545
900×300 16.8 590 9.6 570
900×400 16.8 590 10.8 570
900×500 16.8 820 12 590
900×600 16.8 820 13.2 590
900×700 16.8 1050 14.4 615
900×800 16.8 1050 15.6 615
900×900 16.8 1170 16.8 625

1000×100 18 360 7.2 595
1000×150 18 360 7.8 595
1000×200 18 360 8.4 595
1000×300 18 595 9.6 620
1000×400 18 595 10.8 620
1000×500 18 830 12 640
1000×600 18 830 13.2 640
1000×700 18 1055 14.4 665
1000×800 18 1055 15.6 665
1000×900 18 1290 16.8 685
1000×1000 18 1290 18 685

1100×200 19.2 370 8.4 650
1100×400 19.2 600 10.8 670
1100×600 19.2 830 13.2 690
1100×800 19.2 1065 15.6 715
1100×1000 19.2 1295 18 735
1100×1100 19.2 1410 19.2 745

1200×100 20.4 375 7 700
1200×150 20.4 375 7.8 700
1200×200 20.4 375 8.4 700
1200×300 20.4 605 9.6 720
1200×400 20.4 605 10.8 720
1200×500 20.4 840 12 740
1200×600 20.4 840 13.2 740
1200×700 20.4 1070 14.4 765
1200×800 20.4 1070 15.6 765
1200×900 20.4 1300 16.8 785
1200×1000 20.4 1300 18 785
1200×1200 20.4 1535 20.4 805
